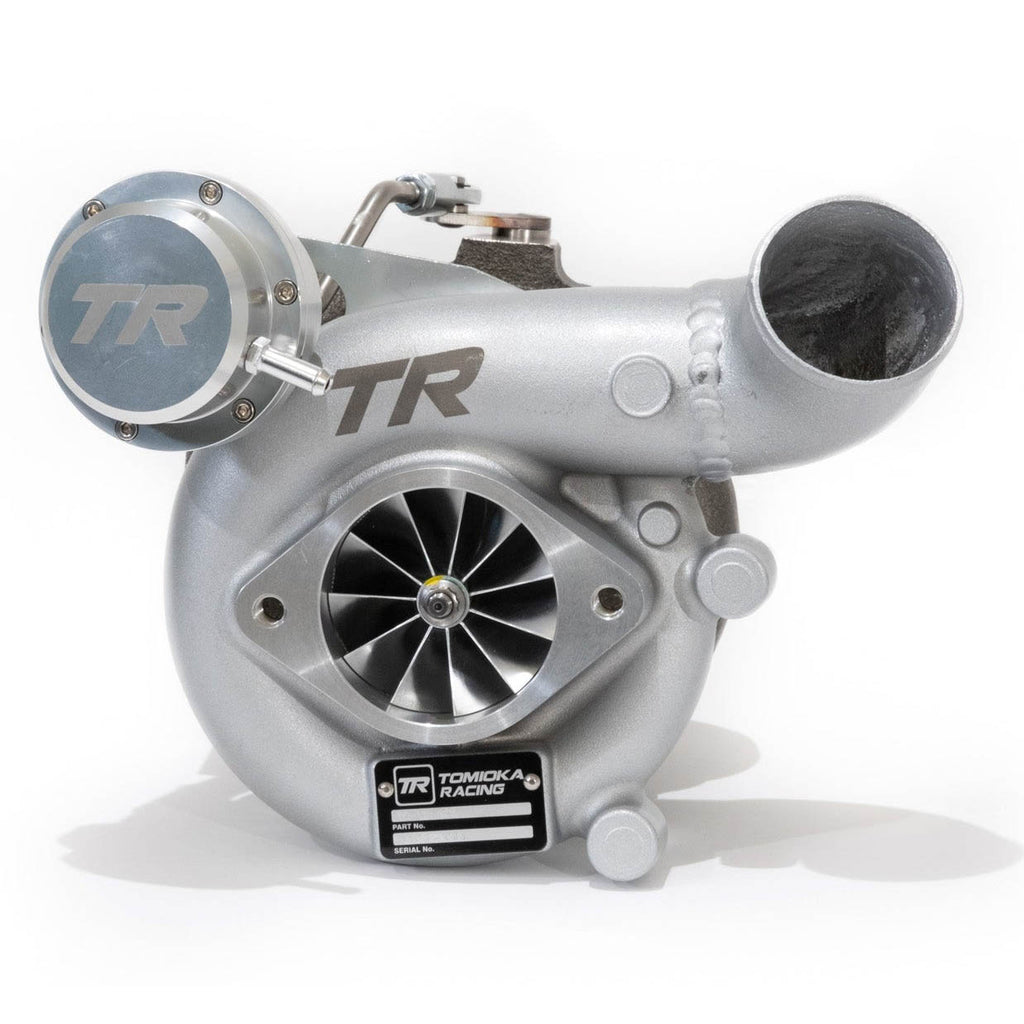

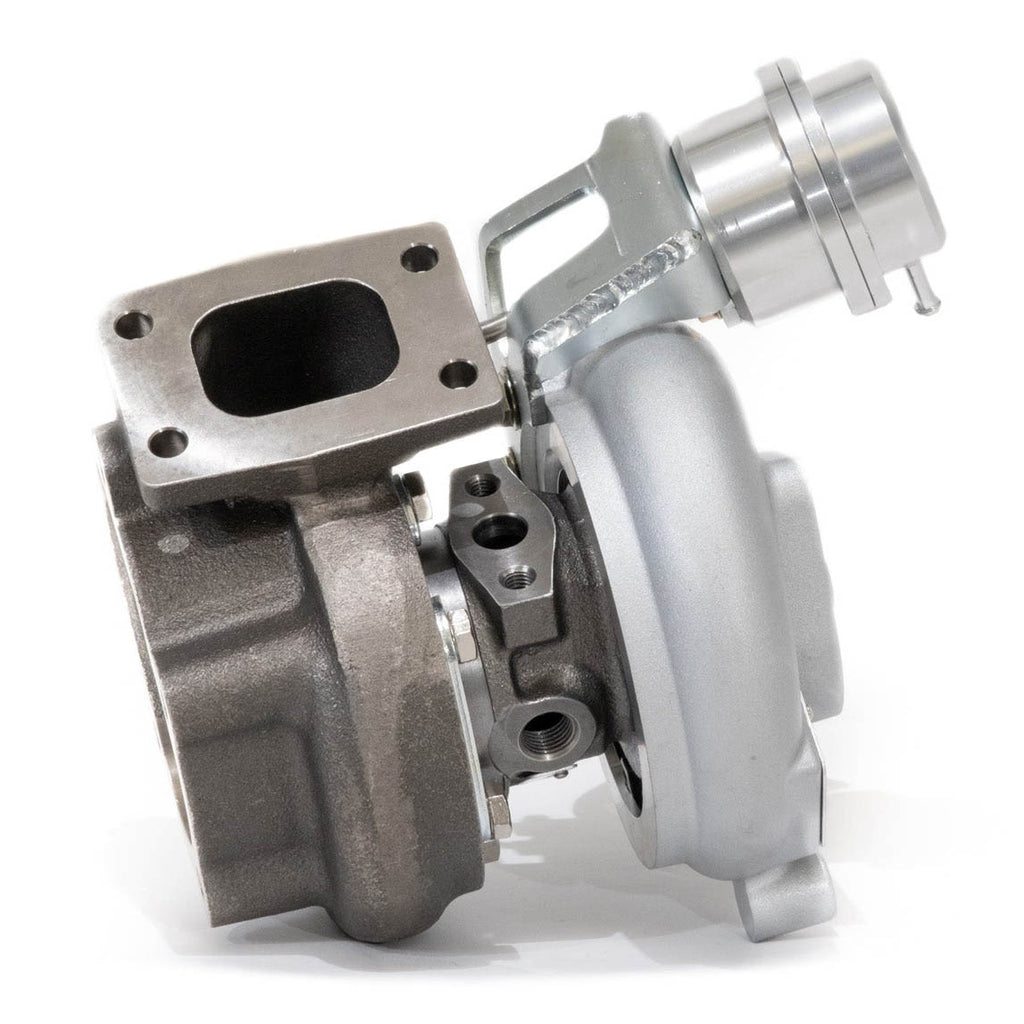

Tomioka Racing's turbocharger kit is an all-in-one solution to increase power for the Subaru BRZ, Scion FRS and Toyota 86, now available in our proprietary Ball Bearing version. The kit comes with a 58/76mm billet compressor wheel turbocharger featuring dual ceramic ball bearing technology and a billet waste-gate actuator.
This turbo kit is able to add 125+HP on the stock fuel system. On a manual transmission, an upgraded clutch is highly recommended but not required. This kit works perfectly fine with automatic transmission.
With custom 54mm ceramic ball bearing requires less oil to run and spools faster. With its larger compressor and turbine wheel, it will achieve higher top-end power compared to the journal bearing version. The turbo is oil & water cooled and come as a dual ball bearing unit for spooling faster. In addition, the billet waste-gate actuator ensures to hold boost levels at high RPM.
Included:
• Turbocharger
• Mandrel Bent Aluminum Front Mount Intercooler
• Tig Welded Stainless Steel Turbo Manifold and exhaust piping
• Charge Pipe
• Air Intake
• OMNI 3 bar MAP Sensor
• 4-ply silicone hose
• Hi-temperature turbo blanket
• All Necessary Hardware to Install
• BMC Air Filter Conical Filter FBSA70-110
• Motul 300V 2L x 1
• TR Winshield Decal x 1
Features:
• IN: 54mm/ EX: 67mm billet compressor wheel
• IN: 54mm/ EX: 49mm turbine wheel
• 54mm Inducer Billet Compressor Wheel CHRA Dual Ceramic Ball Bearing (DCBB)
• 0.8 Bar (10 Psi) Internal Wastegate
• 3-Bar MAP Sensor Included
• Intercooler, piping, ball-bearing, oil & water cooled Included
• Up to 400 WHP for stock engine on E85 Ethanol
• Up to 500 WHP for build engine on E85 Ethanol
