Turbosmart IWG75 Internal Wastegate Actuator (5 PSI, Black), F150 EcoBoost

Turbosmart Upgraded Wastegate Actuators have been developed to provide the maximum possible boost response for your factory frame turbocharger. The Turbosmart IWG75 Series of upgraded Actuators benefit from an increased 'Working Ratio' over the factory equipment, resulting in improved boost response throughout the RPM range.
This Improved 'working ratio' is achieved through an increase to the effective surface area of the diaphragm and revisions to the actual springs fitted, resulting in greater leverage of the forces the actuator is working against (boost and backpressure) while still being super-responsive.
Upgrading with the same base pressure as the factory, you can expect a broader boost and torque curve through peak boost achieved earlier in the RPM and hold longer into higher RPM. These improvements can be amplified with higher base pressures; however, tuning and recalibration are likely required.

Included:

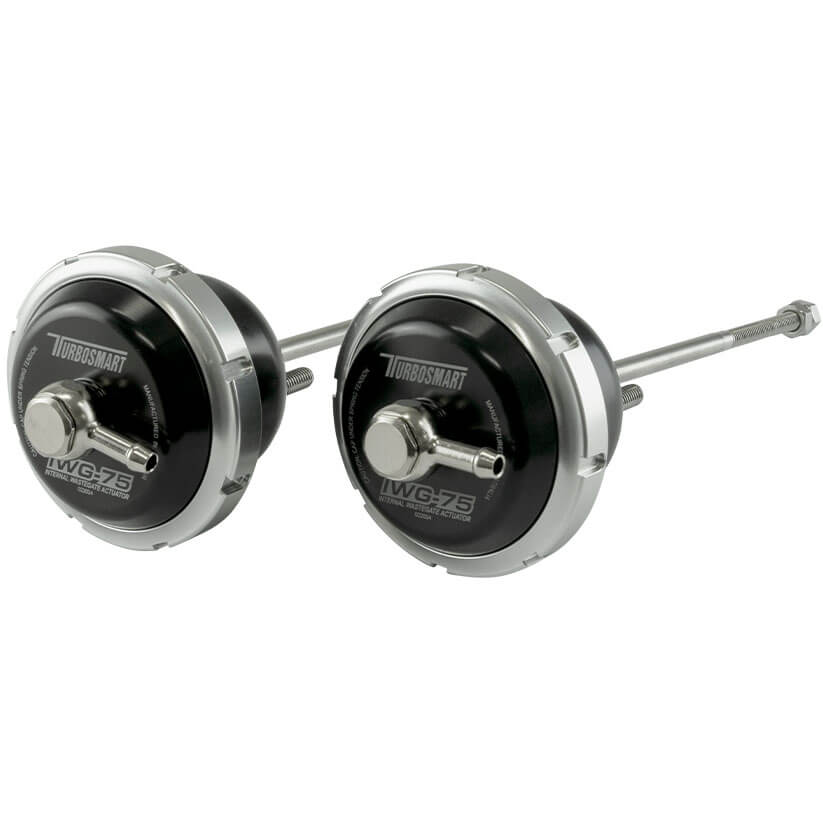

• Pair IWG75 Wastegate Actuators
• Springs Pre-Fitted as per Description
• Required Fasteners and Swivel Hose Barb

Features:
• Proprietary Silicon Nomex Diaphragm
• Choice of Springs from 3psi to 26psi (Optional)
• High-Grade Billet Aluminum Construction
• Stainless Steel Rods and Clevis
• Turbosmart Unique Locking Collar System
