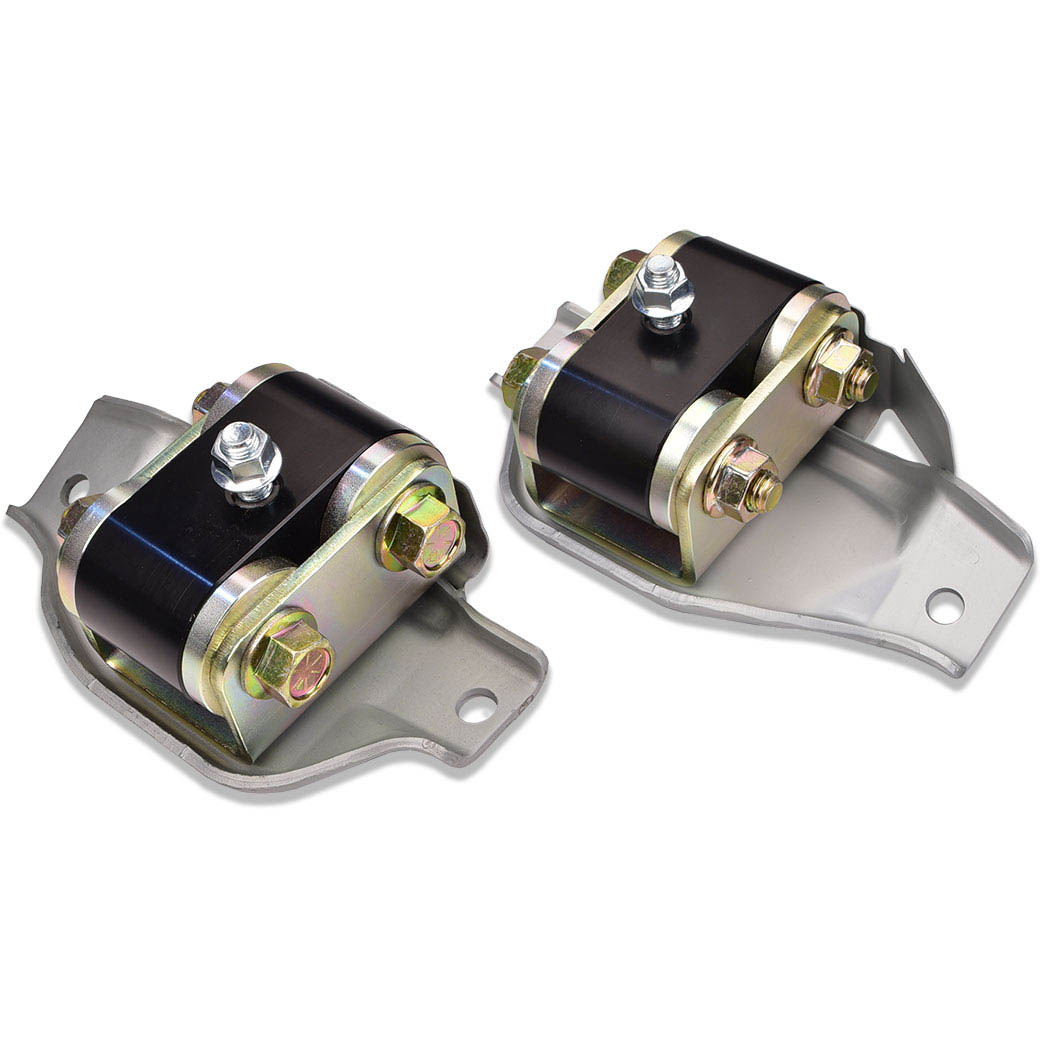

Designed to fit 2008-2014 Subaru WRX and 2005-2009 LGT, the IAG Race Series Engine Mounts are designed to be an all-out racing mount. Whether you're looking for performance gains at the track, the dragstrip or for autocross, these solid mounts are engineered to meet the demands of competitive driving. These engine mounts are equipped with solid steel bushings, leaving no room for lurching or movement. This means the available torque at the crank will directly transfer to the drive train, enabling a large amount of power to be transferred to the wheels. The IAG Race Series Engine Mounts provide solid stability for high-powered builds.
The IAG Race Series Engine Mounts feature bushings that are constructed from solid steel, providing a solid foundation for your high-powered EJ Subaru engine. The engine mounts also feature cold rolled cadmium plated steel brackets with gold zinc plated pins, gold zinc plated bushings, installation hardware and ultra-strong aircraft grade 6061 billet aluminum anodized carriers that are machined in-house. Due to the steel-on-steel design of the bushings, a slight increase in NVH (Noise, Vibration, Harshness) in the cabin is to be expected, as is typical with solid racing mounts.

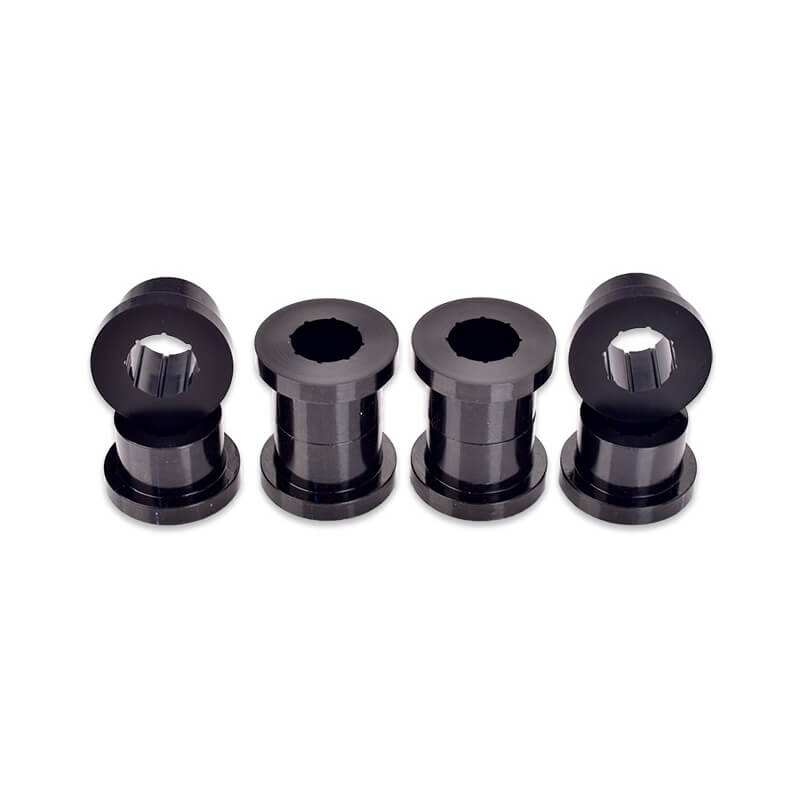

A standout feature of IAG's Engine Mounts is their interchangeable design, letting you adjust the bushing stiffness as your performance needs evolve. The Race Series mounts start with solid metal bushings, but you can replace these with softer 75A or more rigid 90A competition bushings. Instead of replacing the entire mount assemblies, you can simply purchase one of our bushing kits and change your mounts to street or competition level performance.
The IAG Race Series Engine Mounts are designed for easy installation. Those with solid mechanical skills can have them installed in about 30 minutes if using a lift; however, you can also complete the installation without a lift with a bit more time and patience. These mounts utilize the OEM engine mounting plates from the 2002-07 WRX, 2004-20 STI, and 2004-08 Forester XT. For added convenience, IAG includes the correct OEM engine mounting plates with the engine mounts for the 2008-14 WRX and 2005-09 Legacy GT, ensuring a hassle-free setup.
Included:
• (x2) Race Series Engine Mounts
• 8 solid steel bushings
• Hardware
• (x2) OEM engine mounting plates
Features:
• EASY TO INSTALL
• INTERCHANGEABLE BUSHINGS
• SOLID STEEL BUSHINGS
