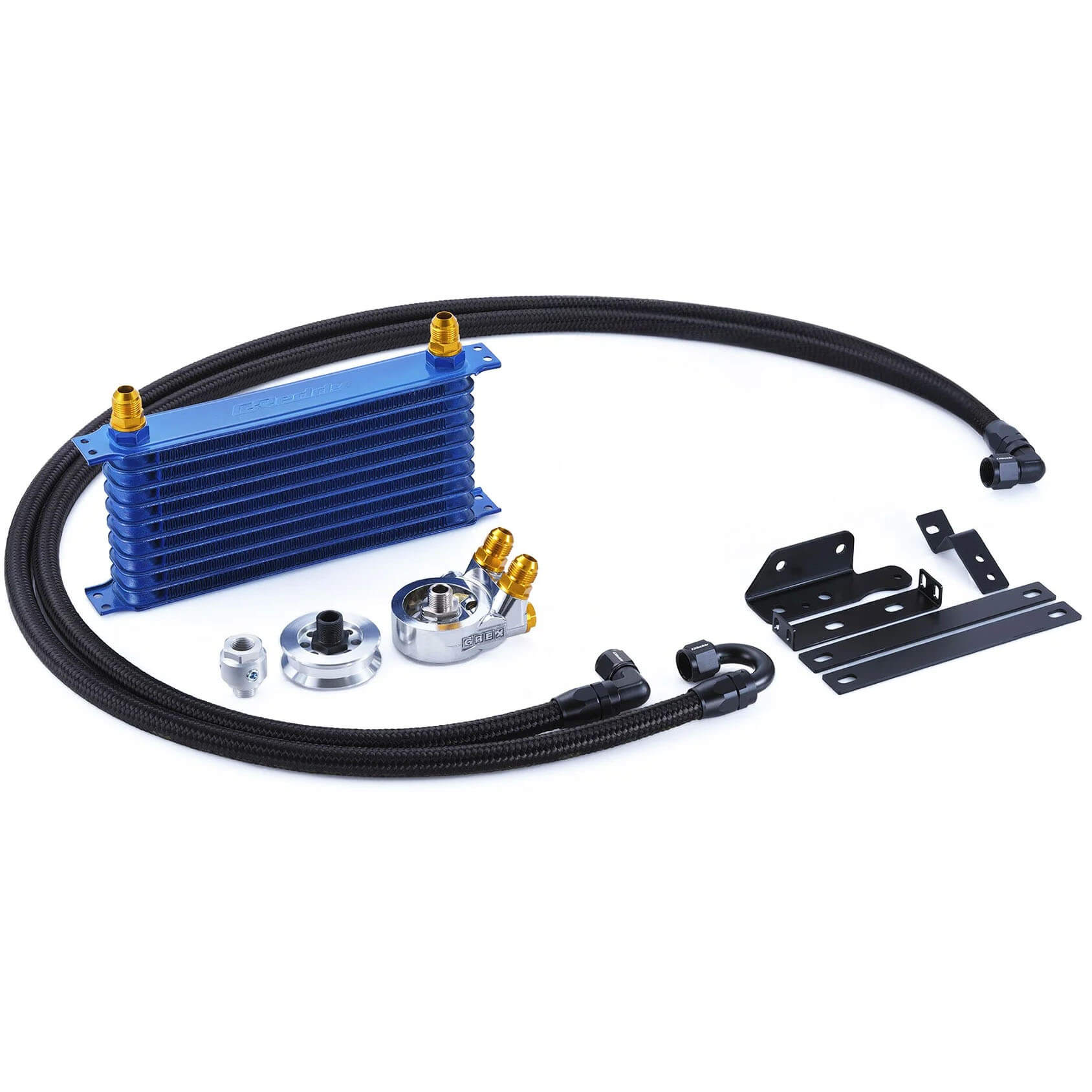

Greddy Oil Cooler Kit, 2017-2020 BRZ & Toyota 86

Due to the manner change, the shape of the air cleaner box, headlight, and bumper has been changed, and
the hose length and air guide plate (86) have been newly designed for later models.

Included:
• OIL COOLER KIT

Features:
• The oil cooler core is installed on the right side of the front bumper opening where it will not affect the radiator.
• The oil cooler hose uses a nylon mesh hose that is lightweight, flexible, easy to install, and less aggressive to the body.
• "Circuit spec" with a wind guide plate is set for further cooling effect
By installing a wind guide plate, the effect is -8°C compared to without a wind guide plate.
• Engine oil cooler 10 stages (NS1010G)
• Built-in thermostat (operating temperature 75°C to 82°C +/-2°C)
• Engine oil volume when oil cooler is installed: approx. 6 liters (normal 5.2 liters)
• Requires center bolt size 3/4-16UNF oil filter (GReddy oil filter OX1 code:13901101)
• GReddy oil cooler sensor terminal (code 12401178) included (1/8PT meter sensor can be installed)
